Standalone

Description

**Does not include connectors, relays, or additional accessories.

The standalone Lil’ Blackbox, is an almost drop in solution for Holset VGT Control. It is powered by Arduino, meaning you can use the Arduino IDE to program, make your own code if you want. Otherwise you can use the Lil’ Blackboxas is, modify the curve headers or use the Android App to tune.

The Lil’ Blackbox has some assembly requirements. Not every Holset VGT is made equal, CANBUS pins and power pins can be changed. The VR sensor connector can have pins in different positions.

You will be required to assemble the connectors to the VGT Turbo and the VR sensor yourself, it is quite simple to solder/crimp the pin to a wire and press it into the housing.

Features:

• Integrated power circuit (Input 9v-15v)
• CAN V2.0B
• VR sensor integration
• 5v output
• 4 programmable pin-modes
• 3 jumper configurable options
• 3 ADC inputs
• Spare pin on interrupt
  • Count separate RPM, etc
• Integrated Bluetooth
  • LBB programmable via IDE
  • Bluetooth programmable name, pin, etc

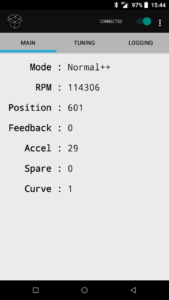

• Android App
  • Real-time statistics
  • Adjust turbo tuning
  • Program tuning curves
